A4201WV Series
- Colors can be customized
- Can be Laser marking
SPECIFICATIONS :
- Voltage Rating：600V AC / DC
- Current Rating：7-10A AC / DC
- Withstanding Voltage：1500V AC/minute
- Temperature Range：-40°C~+105°C
- Insulation Resistance：1000MΩ Min.
- Contact Resistance：20mΩ Max.
- *Suitable 4201H series Housing
- 4201T series Terminal
- *Material:
- Material: PA66 UL 94V-0/2
- Pin: Brass Matte Tin-plated
- Color:Black/other

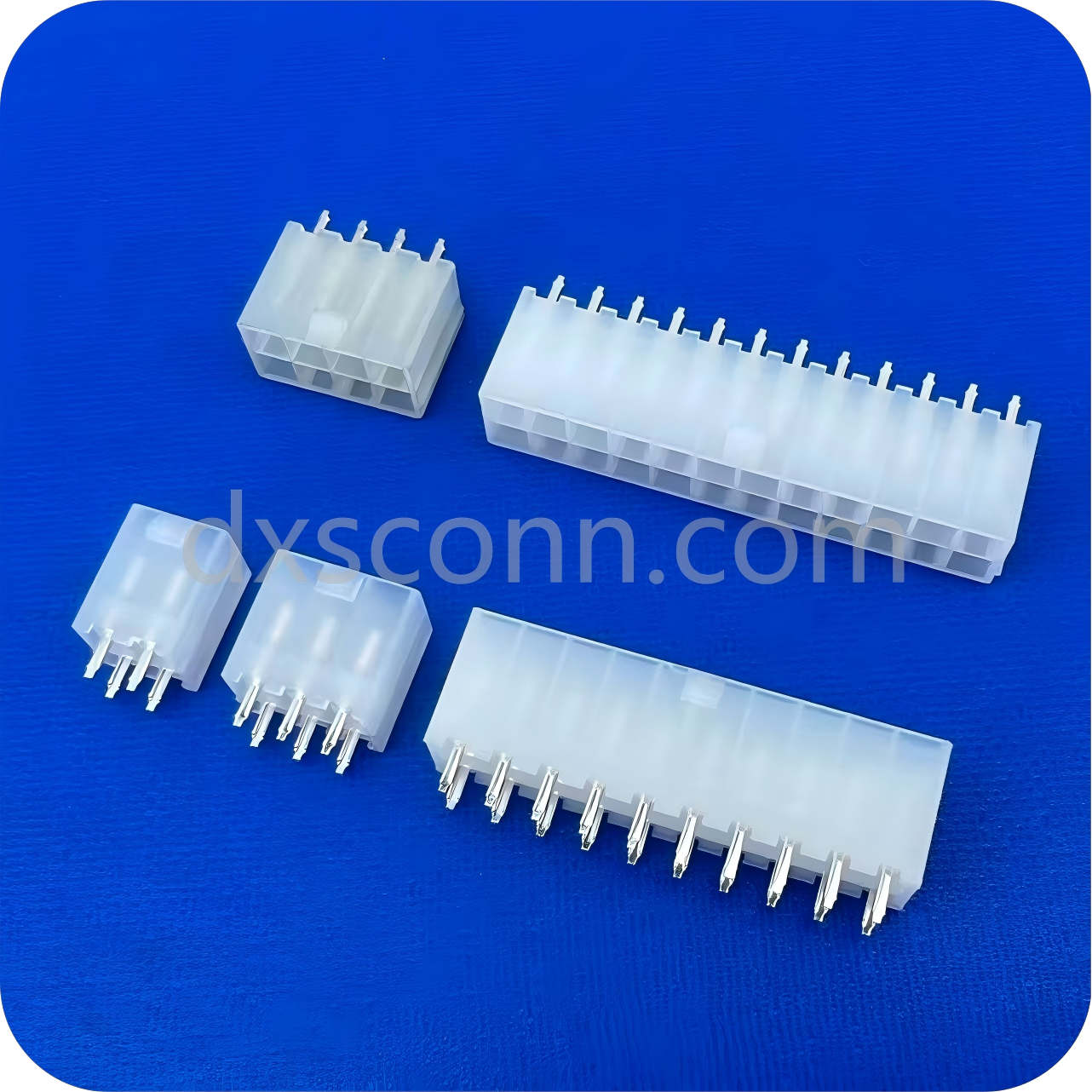

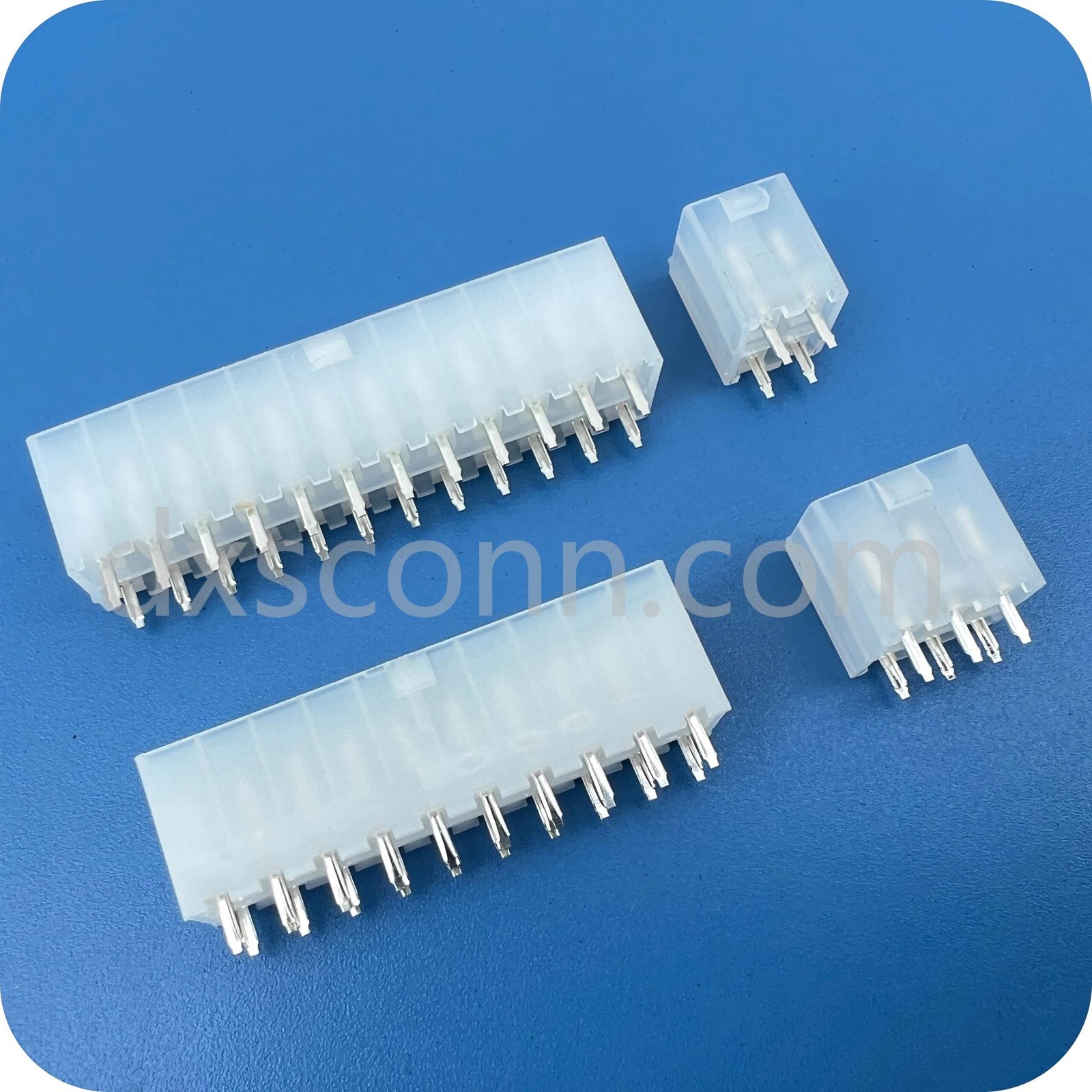

A4201WV-2NP Series 2X1P—2X12P
